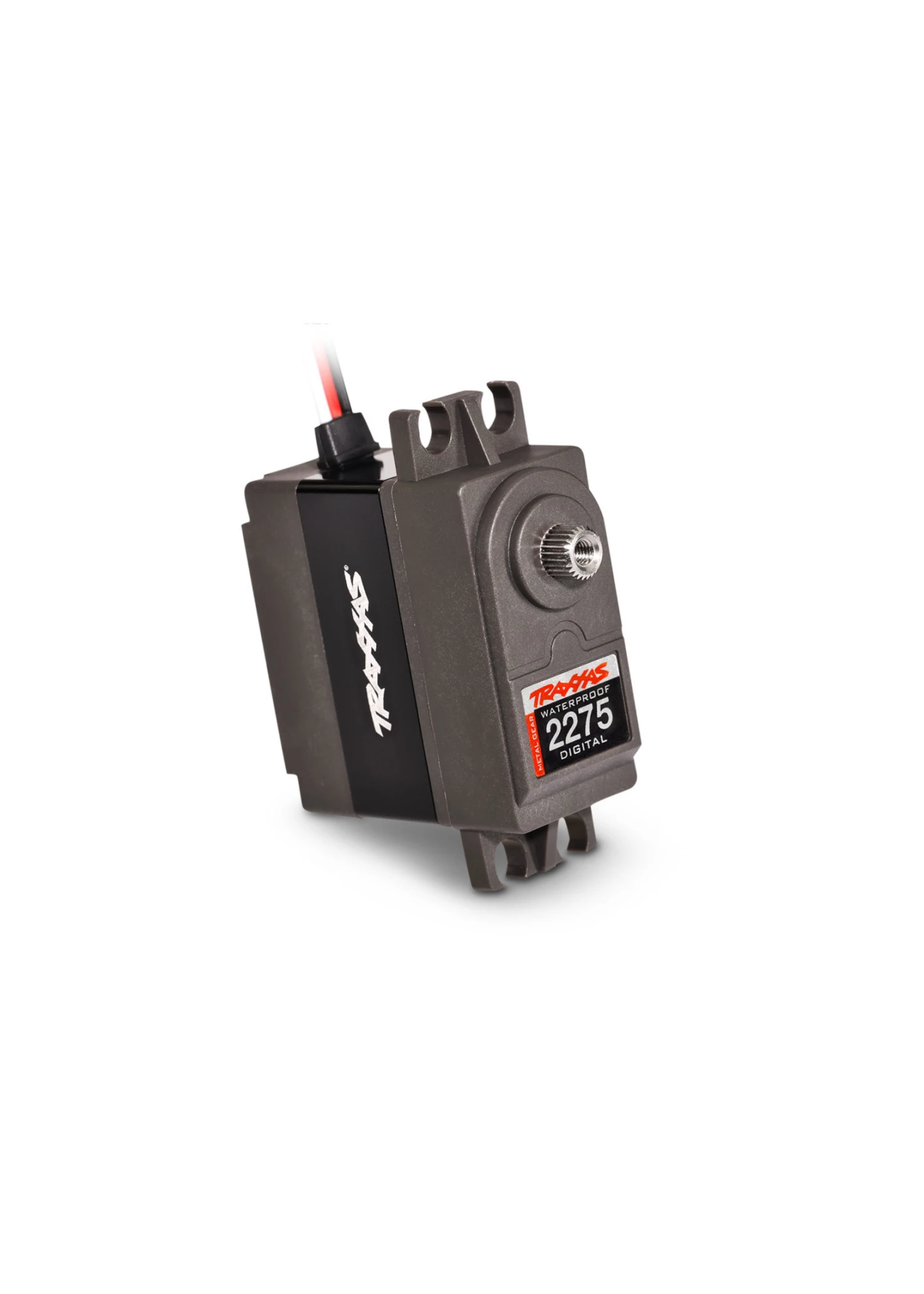

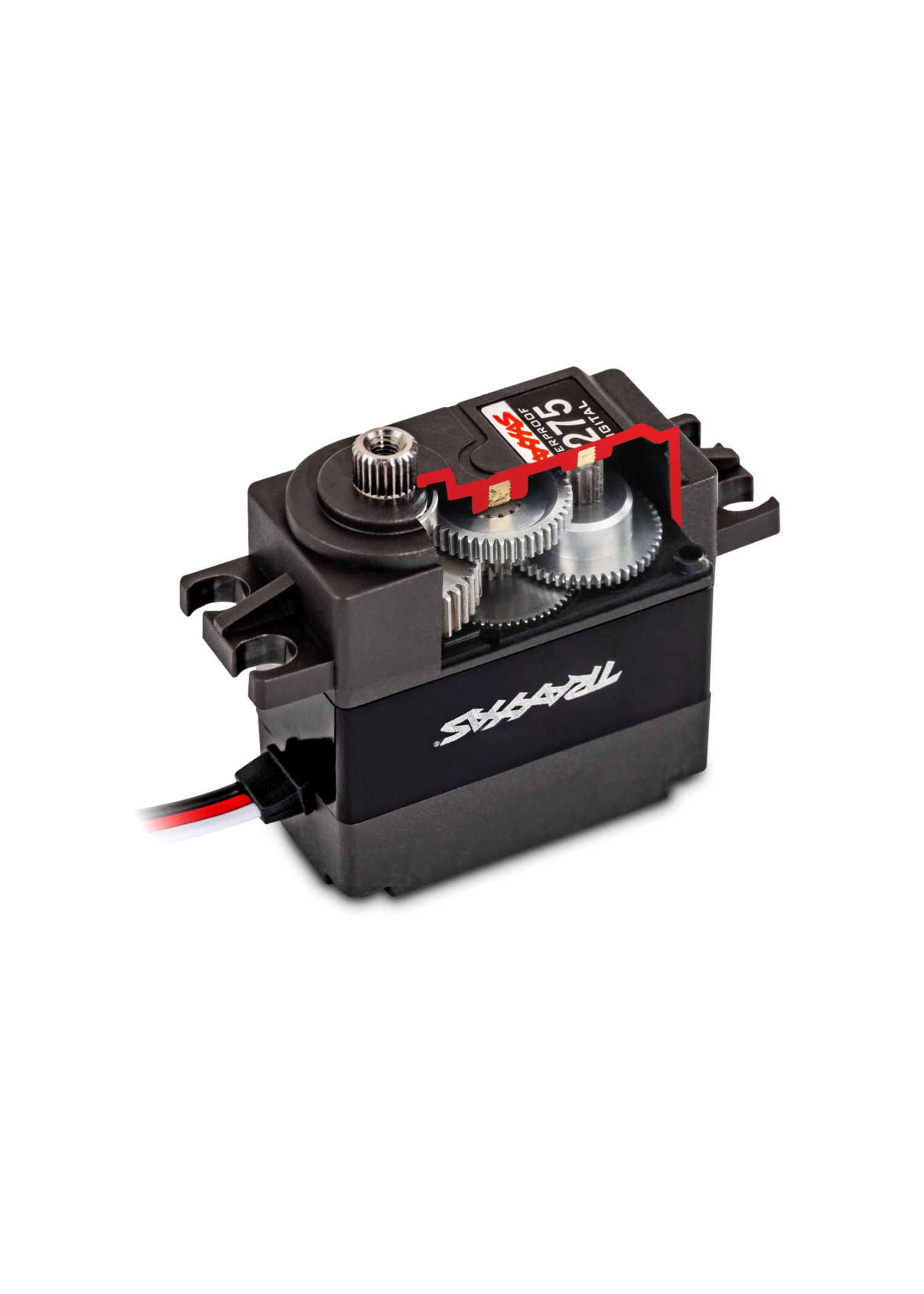

Traxxas 2275 – High Torque Digital Servo

Traxxas 2275 High Torque Digital Servo

Features:

• Factory fit for drop-in installation into Traxxas models
• Waterproof
• 347 oz-in torque
• Dual ball bearings
• Aluminum center case

Specs:

• Motor Type: Brushed
• Operating Voltage: 6.0V DC – 7.4V DC
• Torque: 347 oz-in – 486 oz-in
• Speed: .25 sec/60° – .16 sec/60°
• Weight: 67g
• Gears: Metal
• Output Spline: 25T
• Case: Plastic top/bottom, anodized aluminum center
• Controller: Digital

Replacement part for this model:

Sledge®

For installation on TRX-4 models with the XL-5 HV ESC, use Traxxas external BEC, part #2262, for optimal performance. The Traxxas steel servo horn, part #8247X, is also recommended.
